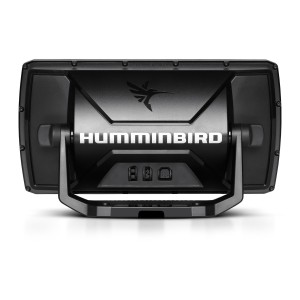

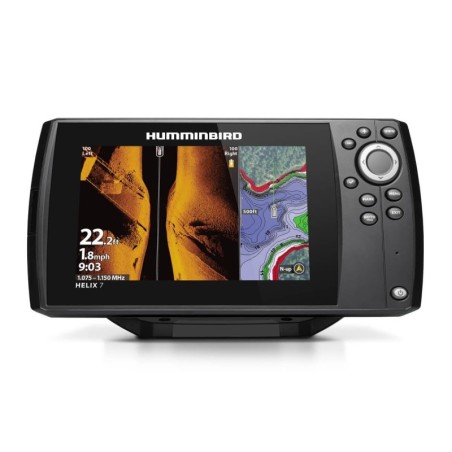

HUMMINBIRD HELIX 7 CHIRP MSI GPS G3 Poglej polno velikost

HUMMINBIRD HELIX 7 CHIRP MSI GPS G3

NOR4109501M

Dobavljivost: Tega izdelka ni na zalogi


Obvesti me ko bo dobavljivo

964,29 €

Znižana cena!

-5%

1 015,04 €

Dodaj v košarico
  • Imate vprašanje?
  • Product Request:


    HUMMINBIRD HELIX 7 CHIRP MSI GPS G3

    HUMMINBIRD HELIX 7 CHIRP MSI GPS G3

    do not include special characters

    * Required fields

    Cancel

    OVERVIEW
    The HELIX 7 CHIRP MEGA SI GPS G3 fish finder features MEGA Side Imaging, MEGA Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live , GPS and Humminbird Basemap built-in. The 7", ultra-wide display gives you ample room to view the many pre-loaded split screen view options.

    FEATURES
    NEW to HELIX 7- MEGA Side Imaging: See the world below like never before with crystal-clear viewing out to 125 feet on either side of your boat. You'll unlock new details with up to 3X more output than standard Side Imaging sonar.
    NEW to HELIX 7- MEGA Down Imaging: Get unprecedented underwater clarity with coverage down to 125 feet below your boat. You'll unlock new details with up to 3X more output than standard Down Imaging sonar.
    Dual Spectrum CHIRP: Before you cast, know what's down there thanks to long, well-defined fish arches, and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low Q CHIRP transducer, Dual Spectrum offers two ways to search: wide mode for maximum coverage and narrow mode for maximum detail.
    SwitchFire Sonar: Take command of how your sonar returns appear. With two display modes, you can add or remove detail, account for water depth, temperature and turbulence, even watch lure presentations - all at the push of a button.
    Humminbird Basemap Built-in: Our enhanced standard basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the U.S.
    AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat, with eight hours of built-in recording time.
    LakeMaster Compatible: Upgrade to the unrivaled accuracy and detail of Humminbird LakeMaster maps. From easy-to-read contours, to highlighted depth ranges, to scrollable lake lists, you'll have all the tools you need to make every moment count
    Navionics Compatible: Humminbird provides even more map options thanks to additional Navionics compatibility. Available maps regions include detailed cartography for saltwater and freshwater applications which make Navionics a great option for fishing, cruising or sailing.
    Includes transducer and mounting hardware, power cable, gimbal mounting bracket.

    SPECS

    Series:HELIX
    Display Size - Diagonal:7"
    Display Pixel Matrix:800H x 480V
    Sonar-Standard:Dual Spectrum CHIRP, MEGA Down Imaging, MEGA Side Imaging
    Sonar-Optional:50 kHz, 50/Low Airmar CHIRP
    CHIRP - Frequencies Supported:Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
    Sonar-Frequencies Supported:50/83/200/455 kHz
    Depth-Sonar:1,200 ft (standard transducer), 3,500 ft (optional 50 kHz)
    CHIRP - Imaging-Frequencies Supported:MEGA DI (1075-1150 kHz), MEGA SI (1075-1150 kHz), 455 kHz (440-500 kHz)
    Depth-Down Imaging:480 ft (455 kHz), 75 ft (MEGA)
    Range-Side Imaging (Side-To-Side):480 ft (455 kHz), 250 ft (MEGA)
    Interface:Keypad Control
    Memory Card Slot:Single Micro SD
    Power Draw:800 mA
    Power Input:10.8-20 VDC
    Power Output Peak-to-Peak:4000 Watts
    Power Output RMS:500 Watts
    Screen Snap Shot:Included
    Sonar Recording:Included
    Mount-Standard:Gimbal
    Mount-Standard Size:10.54" W x 5.8" H x 3.68" D
    Mount-Optional:In-Dash Mounting Kit
    Mount-Optional Size:10.54" W x 5.44" H x 1.13" D
    Transducer Included:XNT 9 HW MSI 150 T
    Transducer Mount Location:Transom
    GPS Chartplotting:Included
    GPS Receiver:Internal
    GPS Trackplotting:Included
    Waypoints, Routes, Tracks/Points:2,750, 45, 50/20,000
    360 Imaging Compatibility:No
    Humminbird Basemap:Included
    LakeMaster Compatibility:Yes
    Minn Kota i-Pilot Link Compatibility:No
    Minn Kota Talon Shallow Water Anchor Compatibility:No
    Navionics Gold/HotMaps Compatibility:Yes
    Navionics Platinum + Compatibility:Yes
    Platinum Compatibility:Yes
    Radar Compatibility:No
    5-Port Ethernet Switch Compatibility:No
    AIS Compatibility:Optional
    Heading Sensor GPS Compatibility:Yes
    NMEA2000:Not Supported
    Target Separation:2.5"
    Upgradable Software:Yes
    View Preset Keys:No
    X-Press Menu System:Yes
    Custom Digital Readout:Yes
    Custom View Selections:Yes
    Display Colors Grayscale:16-Bit
    Display Type:Color TFT
    Temperature:Built In
    Temperature Alarm:Yes
    Temperature Graph:Yes
    UPC:0082324053382

    OWNERS
    MANUALS
    HELIX SERIES - ENGLISH PRODUCT MANUAL HELIX SERIES - FRENCH PRODUCT MANUAL HELIX SERIES - ENGLISH QUICK REFERENCE GUIDE HELIX SERIES - FRENCH QUICK REFERENCE GUIDE ENGLISH TRANSDUCER RESOURCE GUIDE FRENCH TRANSDUCER RESOURCE GUIDE ACCESSORY RESOURCE GUIDE
